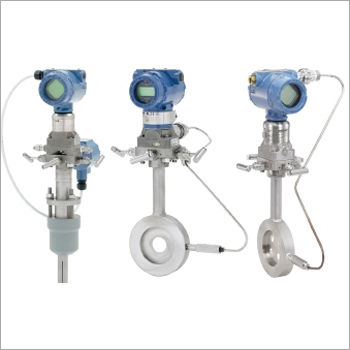

Send InquiryDP Flow Meter
MOQ : 1 Piece
DP Flow Meter Specification
- Current Range
- 420 mA
- Connectivity Type
- Analog Output / RS485 Modbus
- Flow Rate
- 0 to 4000 m3/hr
- Temperature Range
- 0C to 60C
- Measurement Range
- 0 to 4000 m3/hr
- Capacity
- 4000 m3/hr
- Sensor Type
- Differential Pressure
- Resolution
- 0.01 m3/hr
- Humidity %
- 095% RH non-condensing
- Frequency
- 50/60 Hz
- Pressure Range
- 0 to 10 bar
- Material
- Stainless Steel
- Power Supply
- 230V AC / 24V DC
- Power Consumption
- Low (<5 W)
- Accuracy
- 1% of full scale
- Display Type
- Digital LCD
- Range
- 0 to 4000 m3/hr
DP Flow Meter Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash Against Delivery (CAD), Cheque
- Main Domestic Market
- All India
About DP Flow Meter
DP Flow Meter
Our firm is deeply involved in Exporter, Manufacturer, Service Provider, Distributor & Supplier of DP Flow meter in Coimbatore, Tamil Nadu, India. Differential pressure flowmeters use Bernoullis equation to measure the flow of fluid in a pipe. Differential pressure flowmeters introduce a constriction in the pipe that creates a pressure drop across the flowmeter. When the flow increases, more pressure drop is created. Impulse piping routes the upstream and downstream pressures of the flowmeter to the transmitter that measures the differential pressure to determine the fluid flow.
Applications:
- oil and gas, chemical, power, water and waste, pharmaceutical, metals and mining, pulp and paper, food and beverage and HVAC.
- Note: We can offer Orifice Plate with spool piece assembly for DP transmitter.
Robust Design for Industrial Applications
Built with powder-coated steel housing and IP65 ingress protection, this DP Flow Meter resists dust and moisture, ensuring long lifespan in tough environments. Its flange and threaded process connections allow flexible installation along a wide pipe diameter range from DN25 to DN300.
Precise Measurement with Advanced Technology
Utilizing a differential pressure sensor, the meter provides real-time flow data with high accuracy (1% of full scale). The factory calibration guarantees reliability straight out of the box, while the digital LCD display with 128 x 64 pixel resolution delivers clear and straightforward readings at all times.
Versatile Connectivity and Easy Data Management
Equipped with 420 mA analog output and RS485 Modbus, the meter integrates seamlessly with various automation and SCADA systems. Optional data logging enables efficient record-keeping, supporting regulatory compliance and process optimization in water, gas, and steam applications.
FAQs of DP Flow Meter:
Q: How is the DP Flow Meter installed on existing pipelines?
A: The DP Flow Meter is designed with flange and threaded process connections, making it compatible with existing pipelines of DN25 to DN300 diameter. It can be easily mounted using standard industrial flanges, ensuring secure and leak-proof fitting.Q: What output signals does this DP Flow Meter provide for connectivity?
A: This meter offers both 420 mA analog output and RS485 Modbus digital communication. This dual connectivity allows seamless integration with SCADA, PLCs, and other remote monitoring systems for data transmission and process control.Q: When is calibration required for the DP Flow Meter?
A: The meter comes factory calibrated for immediate use, and routine recalibration is not required under normal operating conditions. However, periodic verification may be suggested as per the plant maintenance schedule or specific regulatory demands.Q: Where can this DP Flow Meter be effectively used?
A: This device is suitable for a wide range of industrial settings in India, including water treatment plants, gas distribution systems, and steam generation units. Its robust construction and ingress protection make it ideal for both indoor and outdoor installations.Q: What are the benefits of the IP65 ingress protection rating?
A: IP65 ingress protection ensures that the meter is safeguarded against dust and water jets from any direction. This enhances reliability and longevity in demanding environments, reducing downtime and maintenance requirements.Q: How does the optional data logging feature enhance usage?
A: The optional data logging function allows users to record flow data over time for analysis, compliance, and optimization. This feature supports efficient monitoring and simplifies troubleshooting or audit processes in industrial operations.Q: What is the process for interconnecting the meter with existing automation systems?
A: To connect the meter to automation systems, utilize the analog (420 mA) output or RS485 Modbus port. These standard interfaces ensure straightforward integration with most industrial control and monitoring platforms, supporting real-time data exchange.
