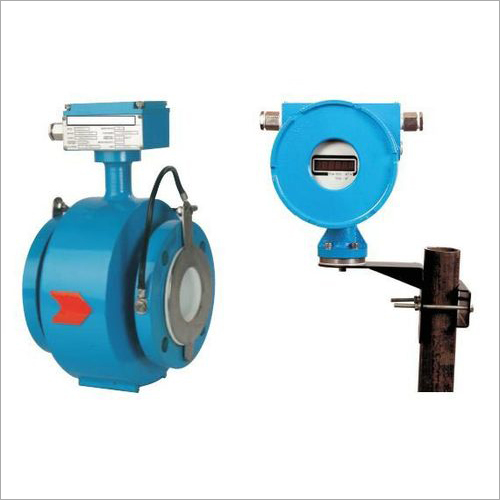

Send InquiryElectromagnetic Flowmeter
MOQ : 1 Piece
Electromagnetic Flowmeter Specification
- Accuracy
- 0.5% of reading
- Connection
- Flanged / Wafer / Threaded options available
- Pressure
- Up to 16 Bar
- Function
- Measures the flow rate of conductive liquids accurately using electromagnetic principles.
- Size
- 15 mm to 600 mm (customizable as per requirement)
Electromagnetic Flowmeter Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash Against Delivery (CAD), Cheque
- Main Export Market(s)
- Australia, South America, Western Europe, Middle East, Africa, Asia, Central America, Eastern Europe, North America
- Main Domestic Market
- All India
About Electromagnetic Flowmeter
Electromagnetic Flowmeter
With the help of well-informed professionals, we are occupied in Exporter, Manufacturer, Service Provider, Distributor & Supplier of Electromagnetic flowmeter in Coimbatore, Tamil Nadu, India. Our clients can avail these product at market leading prices. Widely like for given below features, at very low prices.
Features
- Based on Faraday law of Electromagnetic Induction.
- Suitable for pipe sizes of diameters 10 mm to 1000 mm
- Coil Assembly in hermetically sealed Welded construction
- Choice of PTFE / Neoprene Rubber / Polyurethane liners
- Integral or Remote Transmitter
- Field interchangeable electronics
- Optional LED / LCD display for Flow Rate or
- Totaliser indication in Engineering Units
Applications
- Chemical, Petrochemical and
- Process Industries
- Fertilizer Industries
- Pharmaceutical Industry
- Food Industry
- Drug Industries
- Sugar Industries
Highly Versatile Flow Measurement
This electromagnetic flowmeter seamlessly adapts to a wide range of industrial fluids thanks to customizable body, lining, and electrode materials. It measures flow rates of electrically conductive liquids, including corrosive and viscous media, providing readings with exceptional accuracy. The flexibility in connection types and pressure ratings up to 16 Bar make it suitable for numerous industry sectors.
Advanced Communication and Display Options
Equipped with an LCD backlit display (integral or remote), the flowmeter ensures impeccable visibility even in low-light environments. It offers advanced connectivity through 4-20 mA, pulse output, RS485, and HART, supporting seamless integration into existing process control systems for real-time monitoring and data logging.
Designed for Durability and Reliability
Engineered to withstand harsh operating conditions, this flowmeter comes in protection classes up to IP68, making it dust-tight and suitable for immersion. The wide fluid and ambient temperature ranges, coupled with various cable entry options, ensure reliable operation in diverse industrial settings across India and globally.
FAQs of Electromagnetic Flowmeter:
Q: How does the electromagnetic flowmeter measure the flow of liquids?
A: The electromagnetic flowmeter operates by inducing a magnetic field in the fluid stream. As conductive liquid flows through the meters magnetic field, a voltage is generated between electrodes, which is directly proportional to the flow rate. This voltage is then converted into a flow reading displayed on the LCD screen.Q: What types of fluids are suitable for measurement with this flowmeter?
A: This flowmeter is ideal for any electrically conductive liquid with a minimum conductivity of 20 S/cm. It is suitable for clean or contaminated water, chemicals, acids, and other industrial liquids, making it versatile for diverse process requirements.Q: When should I choose different lining and electrode materials?
A: The selection of lining (PTFE, rubber, neoprene, polyurethane) and electrode (SS316, Hastelloy, titanium, platinum) materials depends on the chemical properties, temperature, and abrasiveness of the liquid. For corrosive or high-temperature media, PTFE lining and special electrodes like platinum or Hastelloy are recommended.Q: Where can this electromagnetic flowmeter be installed and used?
A: The flowmeter can be installed in pipelines across industries such as water treatment, chemical processing, pharmaceuticals, and food and beverage. Its adaptable protection rating (up to IP68) allows it to function reliably even in harsh and wet environments, both indoors and outdoors.Q: What is the process for integrating this flowmeter into an existing PLC or SCADA system?
A: Integration is straightforward due to its range of standard industrial communication outputs, including 4-20 mA, pulse, RS485, and HART. Simply connect the relevant output terminals to your PLC or SCADA input modules, configure according to system requirements, and calibrate as needed for your application.Q: How does using this flowmeter benefit industrial operations?
A: Utilizing this electromagnetic flowmeter ensures highly accurate and repeatable flow measurement, reducing wastage and improving process control. Its robust design, chemical resistance, and reliable data output enhance operational efficiency and reduce maintenance requirements in the long term.
