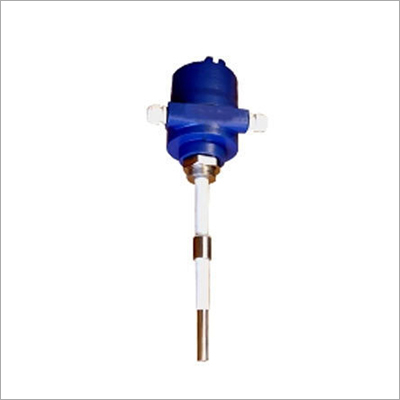

Send InquiryRF Admittance Point Level Switches
MOQ : 1 Piece
RF Admittance Point Level Switches Specification
- Circuit Type
- Potential Free Contact
- Max. Current
- 5A
- Temperature Range
- -20C to +80C
- Mechanical Life
- Over 10 operations
- Response Time
- 1 sec
- Protection Level
- IP65 / IP66
- Number of Module
- Single
- Finish Type
- Powder Coated (Housing)
- Rated Voltage
- 230/110 VAC, 24 VDC
- Automation Grade
- Automatic
- Product Type
- RF Admittance Point Level Switches
- Material
- Stainless Steel (Probe) / Aluminum (Housing)
- Insulation Resistance
- 100 M (500 V DC)
- Contact Resistance
- 50 m
- Max. Voltage
- 250 VAC
- Operating Temperature
- -20C to +80C
- Size
- Threaded connection 1.5 BSP/NPT (standard); Customizable length
- Color
- Grey/Blue (Housing)
- Weight
- Approx. 1.5 kg
- Mounting Type
- Threaded / Flanged
- Current Rating
- 5A at 230 VAC
- No Of Poles
- Single Pole (SPDT)
- Probe Insulation
- PTFE/ Teflon (Optional)
- Ambient Humidity
- 95% RH
- Output Contact
- SPDT Relay
- Detection Principle
- Radio Frequency (RF) Admittance
- Process Pressure
- Up to 10 kg/cm2
- Indication
- LED Indication For Output Status
- Enclosure Material
- Die Cast Aluminum with Powder Coating
- Supply Voltage
- 230 VAC / 24 VDC
- Power Consumption
- < 3 VA
- Fail Safe Operation
- Field Selectable (High/Low)
- Applications
- Level detection in liquids, solids, and slurries
- Cable Entry
- PG-13.5 / M20 x 1.5
- Sensitivity Adjustment
- Externally Adjustable
RF Admittance Point Level Switches Trade Information
- Minimum Order Quantity
- 1 Piece
- Main Export Market(s)
- Middle East, Africa, Central America, South America, Western Europe, Asia, Eastern Europe, North America, Australia
- Main Domestic Market
- All India
About RF Admittance Point Level Switches
RF Admittance Point Level Switches
With our dedicated teams, we are engaged in Exporter, Manufacturer, Service Provider, Distributor & Supplier of RF admittance point Level switches in Coimbatore, Tamil Nadu, India. This type of Level switches are highly reliable can be configured for high or low level point switching. Moreover, we are offering these at rock bottom price range to our reliable customers within a promised time frame.
Applications : Feed industries, Packing machines, cement, sand, lime, flour, salt, food grains, milk, powder.
Advanced Detection Principle
Utilizing RF Admittance, these point level switches offer precise measurement unaffected by material buildup or changing media properties. This advanced principle ensures robust and consistent operation even in challenging process conditions with varying densities and viscosities.
Rugged and Reliable Construction
The enclosed die-case aluminum housing with powder coating guarantees durability and corrosion resistance in harsh industrial settings. The probe is made from stainless steel, with optional PTFE/Teflon insulation for demanding applications, ensuring long service life and minimal maintenance.
FAQs of RF Admittance Point Level Switches:
Q: How does the RF Admittance Level Switch operate for level detection?
A: The switch uses radio frequency (RF) admittance technology, detecting changes in capacitance caused by the presence of liquids, solids, or slurries around its probe. This ensures accurate level detection regardless of product buildup on the probe.Q: What are the key benefits of using this switch in industrial automation?
A: The switch offers reliable and fast response time ( 1 sec), robust construction, and resistance to harsh environments. Its LED output indication, fail-safe operation, and externally adjustable sensitivity improve safety, efficiency, and flexibility in industrial processes.Q: Where can this RF Admittance Level Switch be installed?
A: It is suitable for installation wherever level detection in tanks, silos, vessels, or pipelines containing liquids, solids, or slurries is required. With threaded or flanged mounting options and customizable probe lengths, it adapts to diverse industrial setups.Q: When should sensitivity adjustment be performed?
A: Sensitivity adjustment should be performed during initial setup or whenever there is a change in process media characteristics (e.g., density or moisture content). The external adjustment capability allows for simple on-site calibration without disassembly.Q: What processes benefit most from this point level switchs features?
A: Processes involving materials prone to sticking, heavy slurries, or high humidity environments benefit greatly due to its robust probe design, high insulation resistance, and ability to ignore build-up on the sensing element.Q: How is fail-safe operation configured on this switch?
A: The fail-safe operation mode can be field selected for either high or low conditions. This feature ensures that in case of power loss or device failure, the switch will default to a predetermined safe state, protecting both processes and equipment.
